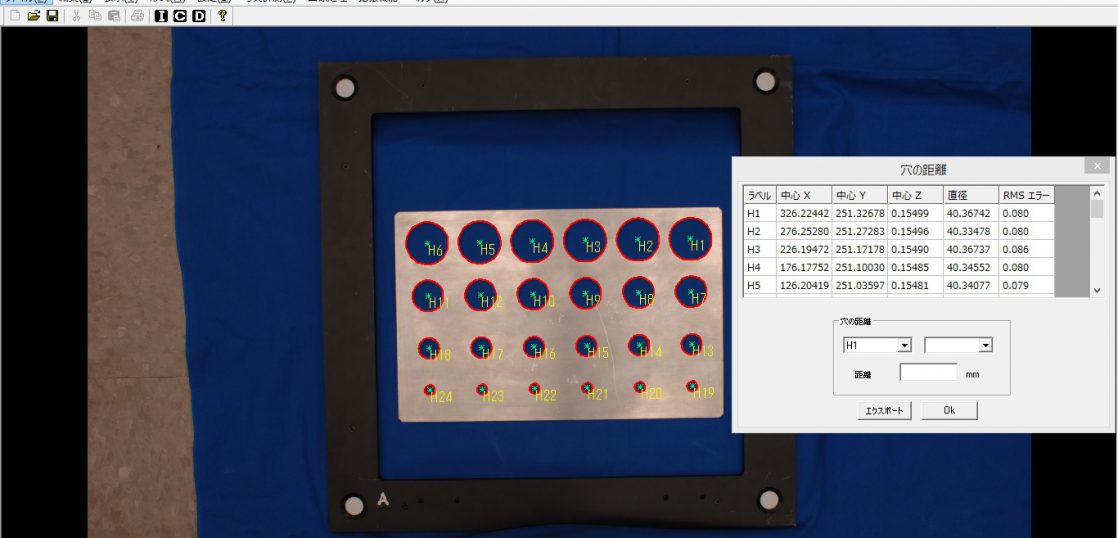

This software can measure hole diameter, hole position, hole-to-hole distance, crack on roads and walls, and export edges.
This can measure the object on the same plane of the calibration plate (or on the parallel plane).
This software is one of the most used software in PhotoCalc series in many fields like airline industry, construction industry, and etc regardless of the company size.
This software needs one image taken from front.
Camera | Almost all cameras available(including DSLR, smartphone, tablet) |
Composition | SingleView software. digital camera, PC, calibration plate |
Input | JPEG |
Output | txt, igs, dxf |
Accuracy | 1/3,000 to 1/10,000 against the object size*
* This depends on camera resolutions |
OS | Windows7, Windows10 (not compatible with MacOS) |
CPU | PentiumⅢ500MHz or faster |
RAM | More than 1GB |
Language | Japanese / English |
